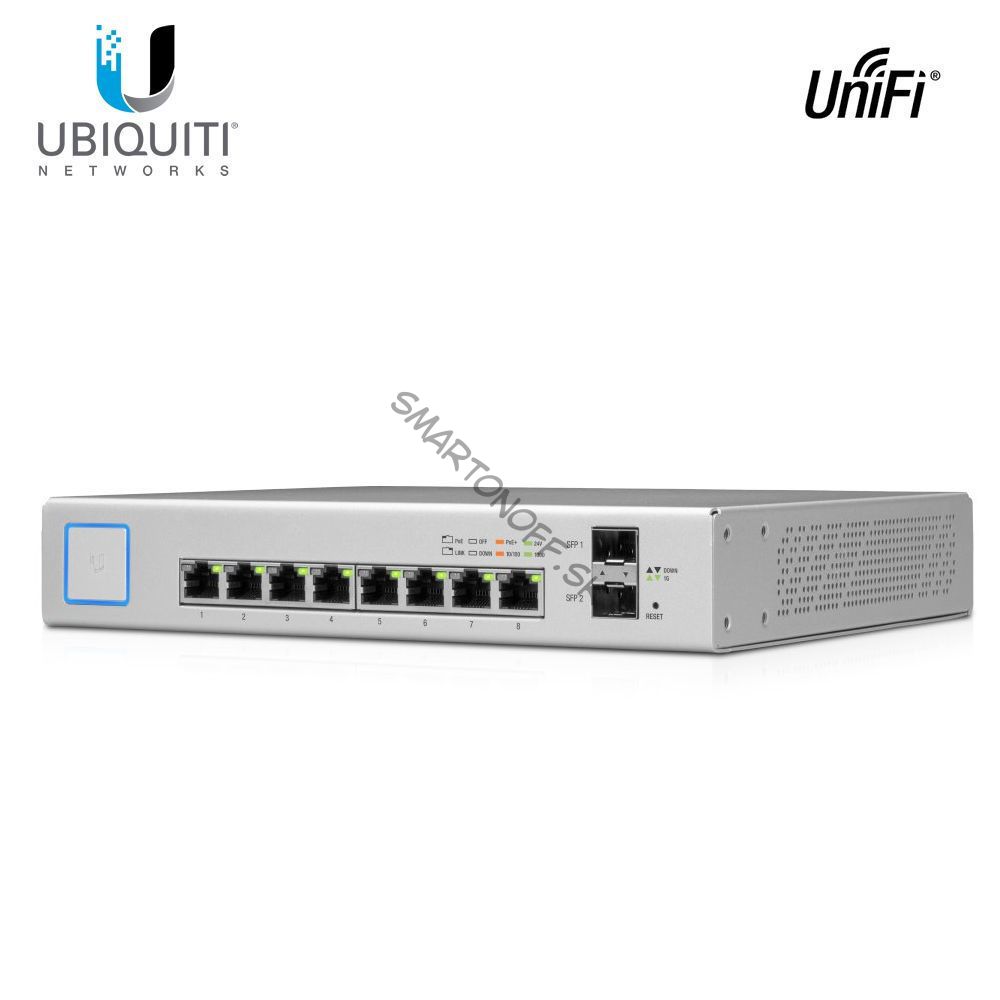

Ubiquiti UniFi switch US-8-150W 8x1000Mbps + 2x SFP PoE/PoE+/PoE24V

Popis produktu:

Model: US-8-150W
• (8) Gigabit RJ45 Ports
• (2) SFP Ports
• Non-Blocking Throughput: 10 Gbps
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• Maximum Power Consumption: 150W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Quiet, Fanless Operation
• Rackmountable with Rack-Mount Brackets (Included)
• Desktop-Mountable (Do not physically stack the US-8-150W.)


Prehľadný konfigurártor switchow UniFi GEN1 a GEN2 s filtrom k dispozícii na
https://switch.ui.com/gen2/


US-8-150W
Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight Rack-Mount Brackets Excluded Rack-Mount Brackets Included
1.65 kg (3.67 lb) 1.7 kg (3.75 lb)
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface Ethernet In-Band
Total Non-Blocking Throughput 10 Gbps
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
Max. Power Consumption Including PoE Output Excluding PoE Output
150W 20W
LEDs Per Port RJ45 Data Ports SFP Data Ports
PoE, Speed/Link/Activity Speed/Link/Activity
Sound Level 34 dBa
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC

Stránky o produkte:

https://www.ubnt.com/unifi-switching/unifi-switch-8-150w/

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter
